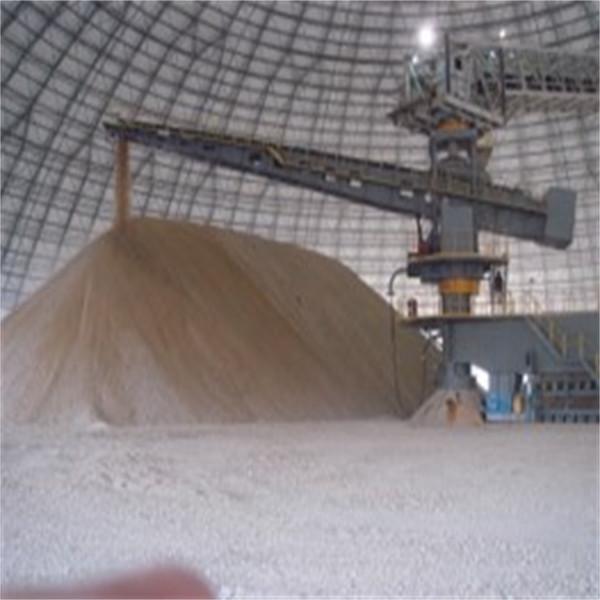

Boom Type Stacker and Reclaimer
Introduction
The boom type scraper stacker and reclaimer are being increasingly used worldwide in enclosed circular stockyard. They are being used in nearly all industries and for almost all kinds of bulk materials. The boom type scraper stakcer and reclaimers have span up to 60 m and capacity up to 5,000 t/h.
applications
Circular bridge type scraper stacker and reclaimer is mainly used in building materials, coal, metallurgy, electric power, port, and other industries, and is mostly used to stack limestone or coal and other bulk materials. It is equipment that continuously stacks and full section reclaiming, It is suitable for indoor or open stockyards where bulk materials need to be blended, stored and transferred. It can complete the blending and stacking and blending and reclaiming of materials at the same time or separately
Working principle
The cantilever of the stacker is equipped with a belt conveyor, and the materials feeding from the belt conveyor on the trestle are stacked through the belt conveyor on the cantilever of the stacker; The reclaimer completes the reclaiming work through three sets of driving linkage processes: traveling, luffing and scrape.
Specification of circular bridge scraper stacker and reclaimer
| description | parameter | unit |
| material | limestone,raw coal | |
| density | 0.8~1.5 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| stacking capacity | 500~2000 | t/h |
| reclaiming capacity | 200~1200 | t/h |
| rail span | Φ60~Φ120 | m |
NOTICES
The customer shall provide the following information when place order
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
